Product being phased out- contact us for details

Prod.No. 94327 EAN: 4007529943272 Indoor 140-L covering included

Successor product: 92610 - Indoor 180-R UK covering included
  • Voltage: 110 – 240 V AC 50 / 60 Hz

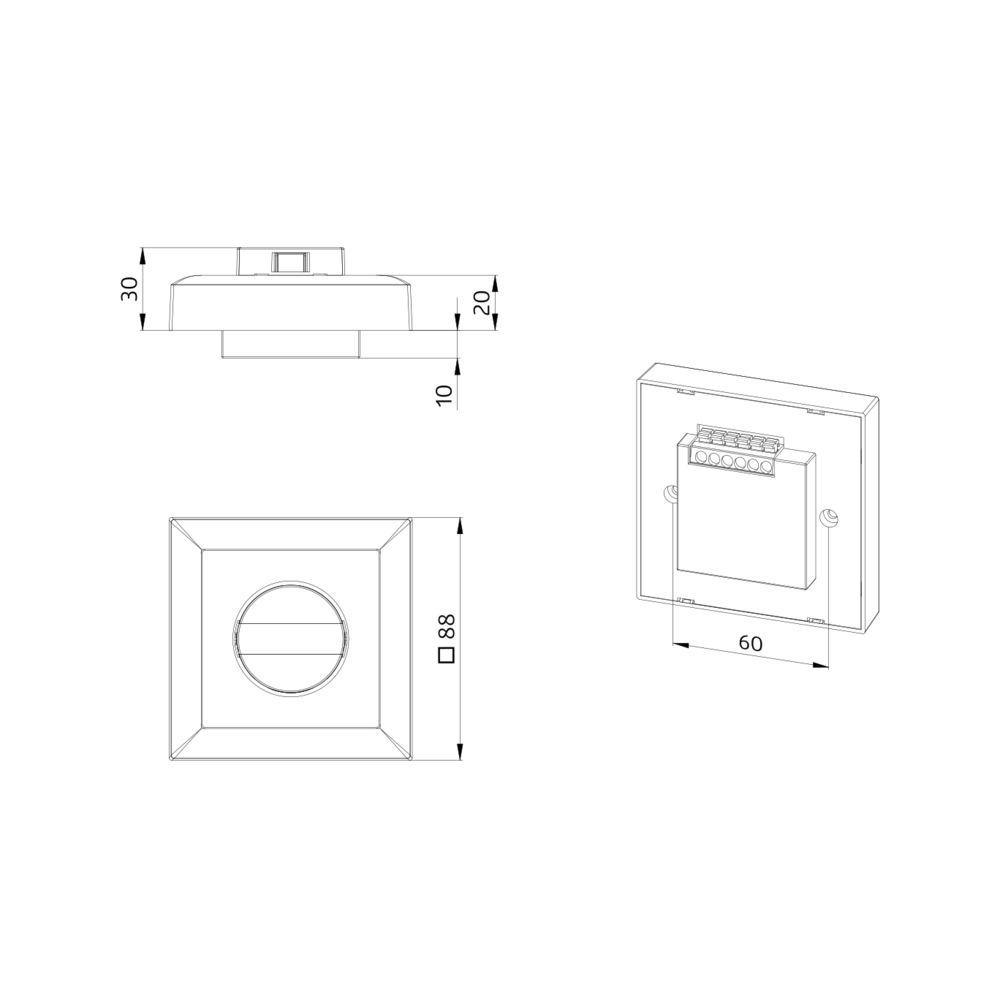

  • Dimensions: 88 x 88 x 30 mm
  • Power consumption: approx. 0.4 W / approx. 0.8 W with nightlight
Voltage
110 – 240 V AC 50 / 60 Hz
110 – 240 V AC 50 / 60 Hz
110 – 240 V AC 50 / 60 Hz <br>5 x NiMH / 30 AAAA<br>1.2 V / 200 mAh
Show available options
 11 – 48 V AC / DC
Show available options
 110 – 240 V AC 50 / 60 Hz Power supply via staircase switch
Show available options
 110 – 240 V AC 50 / 60 Hz <br>4xNiMH / 1,2V / 200mAh
Show available options
 via KNX BUS
Show available options
 via DALI Bus, max. 22.5 V DC
Show available options
Type of contact (k)
1x µ-contact, NO contact with tungsten pre-make contact
1x µ-contact, NO contact with tungsten pre-make contact
µ-contact, dry NO contact
Show available options
 µ-contact, dry NO contact, with Reed relay
Show available options
 µ-contact, NO contact with tungsten pre-make contact
Show available options
Range
8.00 m
10.00 m
8.00 m
Degree / class of protection
IP20
IP20
IP54
Show available options
Colour
pure white
pure white
Communication interface
switching output, switching output (1 Channel)
slave
Show available options
 switching output, switching output (2 Channel)
Show available options
switching output, switching output (1 Channel)
KNX
Show available options
 DALI-2 input device (BMS), DALI
Show available options
Mounting
flush-mounted
flush-mounted
surface-mounted
Show available options
Designation Value
Voltage: 110 – 240 V AC 50 / 60 Hz
Dimensions: 88 x 88 x 30 mm
Power consumption: approx. 0.4 W / approx. 0.8 W with nightlight
Detection area: horizontal 120° (Wall mounting)
Range: max. 8 m across
max. 3 m towards
Monitored area (tangential movement): 67 m² / 1.1 m mounting height
Mounting height min./max./recommended: 1 m / 1.2 m / 1.1 m
Degree / class of protection: IP20 / Class II
Ambient temperature: -25 °C to +50 °C
Housing: polycarbonate, UV-resistant
Material color: white glossy, similar to RAL9010
Channel 1 (lighting control)
Designation Value
Switching power: 2000 W, cos φ = 1
1000 VA, cos φ = 0.5
300 W LED
max. inrush current Ip (20 ms) = 165 A
max. inrush current Ip (20 µs) = 800 A
Type of contact (k): 1x µ-contact, NO contact with tungsten pre-make contact
Follow-up time: 15 sec – 30 min
Orientation light: 0 – 100 % / OFF / 15 s – 30 min
Night light: 0 – 100 %
Switch-on threshold: 10 – 2000 Lux

Wall-mounted occupancy detector with integrated pushbutton

One channel for switching light (selectively main light or orientation light)

Integrated downlight with the function of an orientation or a night light

Extension of the detection range possible by using up to 5 other Indoor 140-L

Can be used as either Master device or Slave device

Relay with tungsten pre-make contact, optimised for LED loads

Available with covering (centre plate dimensions 60 x 60 mm) or without covering for use with covering (centre plate dimensions 50 x 50 mm) in 4 different colours

Please order coverings for EU version separately; available in various colours

In combination with centre plates usable with current frame systems of various manufacturers

B.E.G. frames and centre plates for combination with other frame systems available

Application examples: hotel corridors, bedrooms, rest homes
