Product no longer available

Prod.No. 92881 EAN: 4007529928811 PD2-KNX-FC

Successor product: 93382 - PD2N-KNX-ST-FC
  • Voltage: via KNX BUS

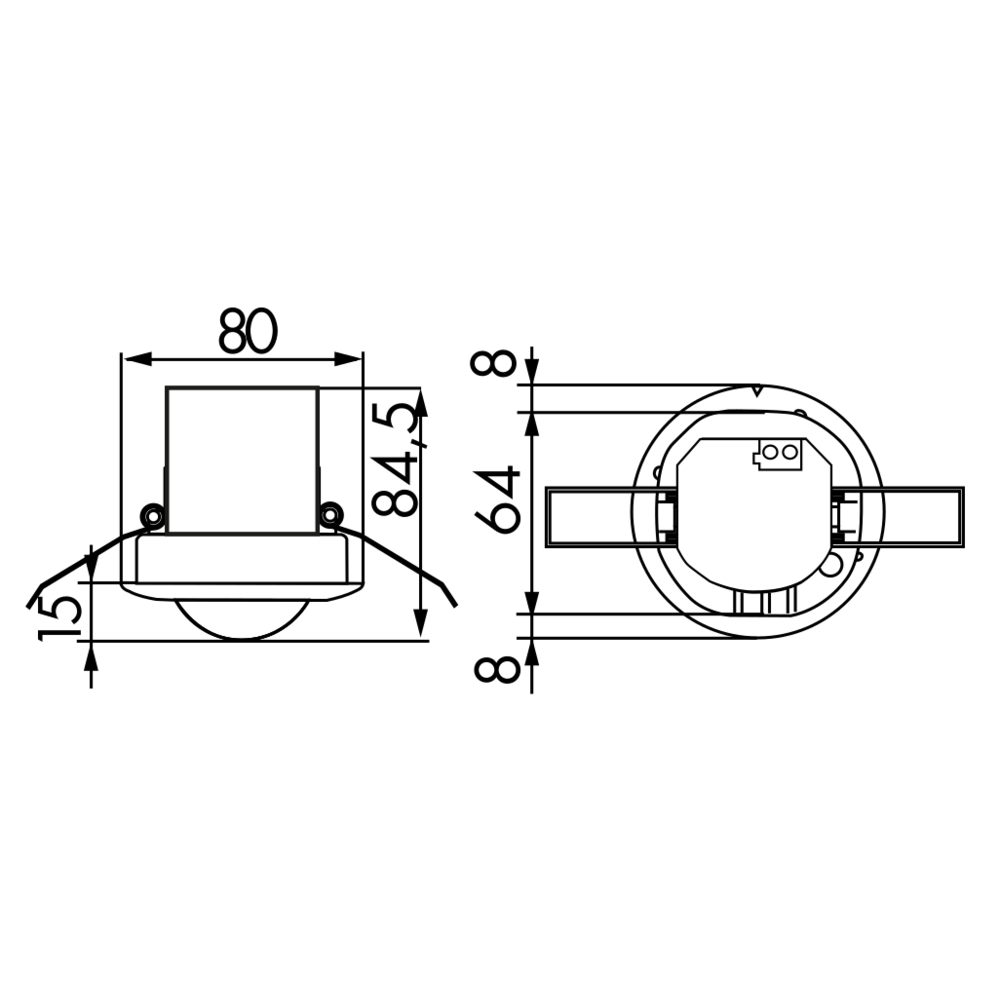

  • Dimensions: Ø 80 x 84.5 mm
  • Typ. power input: 7 mA
Designation Value
Voltage: via KNX BUS
Dimensions: Ø 80 x 84.5 mm
Typ. power input: 7 mA
Detection area: horizontal 360° (Ceiling mounting)
Range: max. Ø 10 m across
max. Ø 6 m towards
max. Ø 4 m seated
Monitored area (tangential movement): 78 m² / 2.5 m mounting height
Mounting height min./max./recommended: 2 m / 5 m / 2.5 m
Degree / class of protection: IP20 / Class II
Ambient temperature: -25 °C to +55 °C
Housing: polycarbonate, UV-resistant
Material color: white mat, similar to RAL9010
Brightness set value: 5 – 1200 Lux
Light measuring: Mixed light measuring

KNX occupancy detector with integrated KNX bus connector

When using the product database B.E.G._Praesenzmelder_928xx_V5.0, the following operation modes are available: 1. Full automatic mode 2. Semi-automatic mode 3. Slave mode 4. Occupancy-independent regulating mode

Detectors with firmware version 4 are not compatible with the new software.

The software is available for free download on the B.E.G. homepage. All detectors use the same software.

Up to three additional switching channels – selectively either daylight-depending or not

Set values and follow-up times can be changed for all channels using communication objects

Burn-in function with adjustable burn-in time from 1 to 100 hours

With activatable motion LED, deactivatable via ETS parameter, communication object or remote control

Settings via ETS 3 and 4

The product database for import into the ETS database can be downloaded from the B.E.G. homepage.

Typical applications:
Offices, conference rooms, schools, nursery schools, hospitals
