Product no longer available

Prod.No. 92703 EAN: 4007529927036 FL3N-LED

  • Voltage: 110 – 240 V AC 50 / 60 Hz

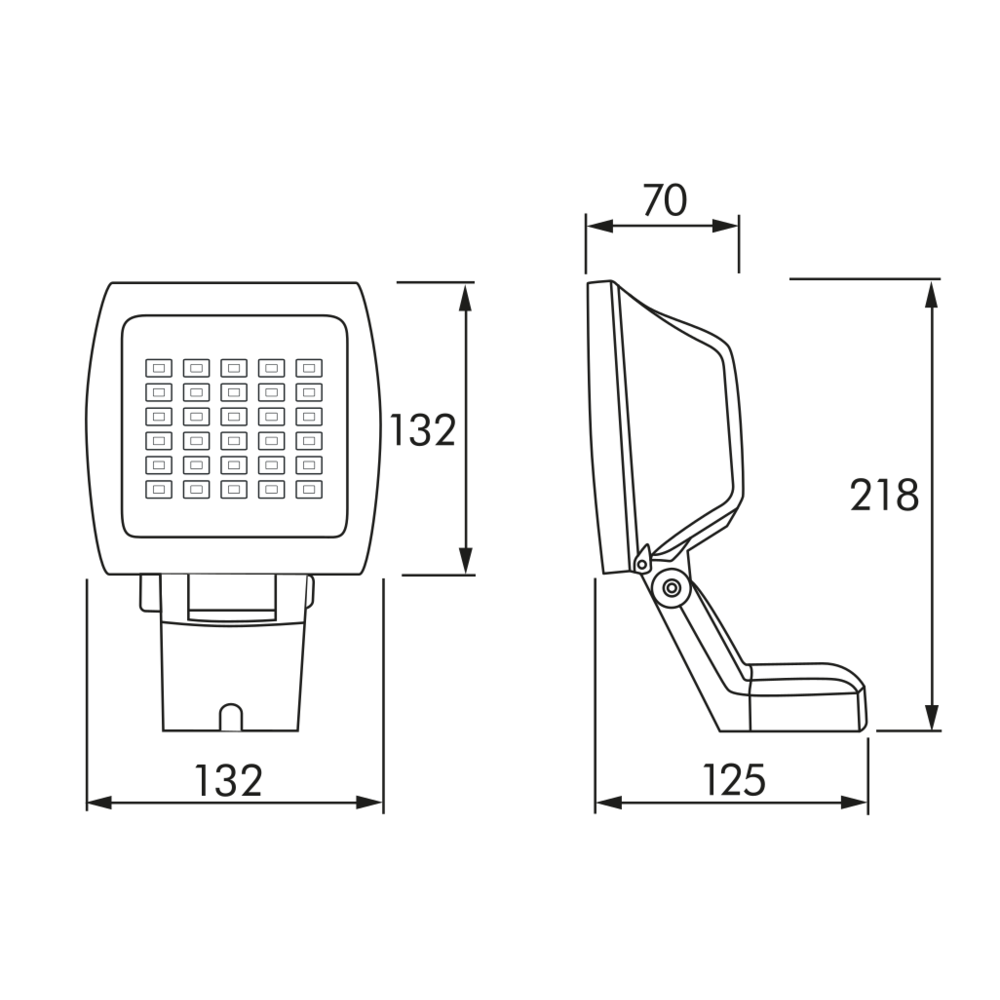

  • Dimensions: 136 x 125 x 218 mm
  • Luminous flux / intensity: LED circuit board securely mounted
    Colour temperature: 4000 K neutral white

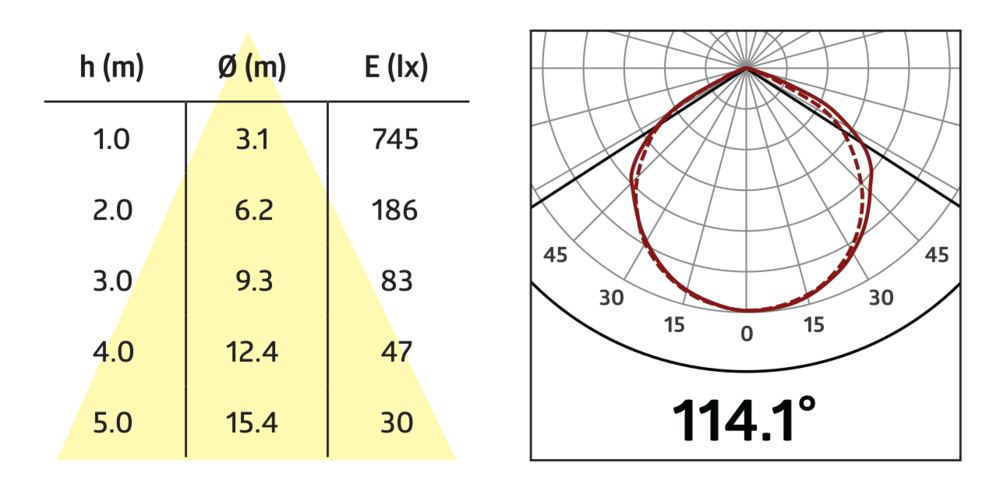

    Luminous flux of light 1050 lm
    Peak: 539 cd
Designation Value
Voltage: 110 – 240 V AC 50 / 60 Hz
Dimensions: 136 x 125 x 218 mm
Luminous flux / intensity: LED circuit board securely mounted
Colour temperature: 4000 K neutral white
Luminous flux of light 1050 lm
Peak: 539 cd
Efficiency: 75 lm/W
Photobiological safety: RG 0
Colour reproduction: CRI 82.8 / TM30: 82.7
Power consumption: 14 W / PF 0.7
Degree / class of protection: IP44 / Class I
Impact strength: IK05
Ambient temperature: -20 °C to +40 °C
Housing: Case die-cast aluminum, lower section UV-resistant polycarbonate
Lens: glass cover, clear
Material color: white mat

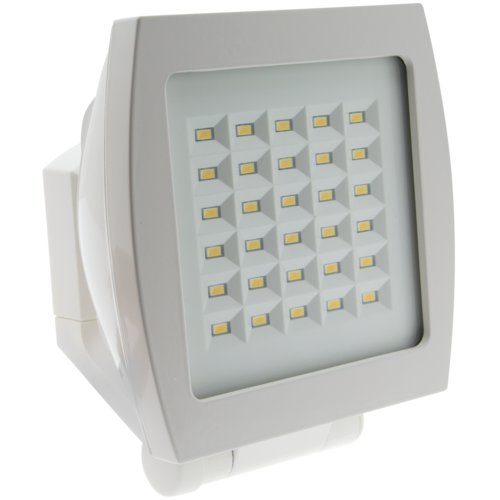

Pivoting LED floodlight for exterior wall mounting

Direction can be fixed with locking device

Highly robust cast aluminium case with corrosion-resistant stainless steel screws

Easy mounting of base with electrical connection, insertion of light, and locking of floodlight

High energy efficiency and long life using premium-quality LED technology and good thermal management

Broad light distribution for even illumination of large surfaces

Application examples:
illumination of loading ramps, parking lots

Product no longer available
Prod.No. 38004

Diffusion lens set FL3N

  • Dimensions: 100 x 100 mm
  • Material color: transparent/opal
Go to product
Tender document 92703 Downloads
Manual Downloads
Photometric data EULUMDAT Downloads
