Product no longer available

Prod.No. 92626 EAN: 4007529926268 FL2N-LED-230

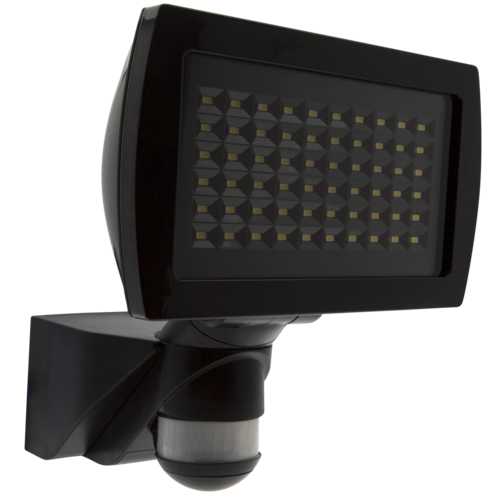

Pivoting LED floodlight with motion detector for exterior wall mounting

Floodlight can be pivoted on three axes, direction can be fixed with locking device

Highly robust cast aluminium case with corrosion-resistant stainless steel screws

Designation Value
Voltage: 110 – 240 V AC 50 / 60 Hz

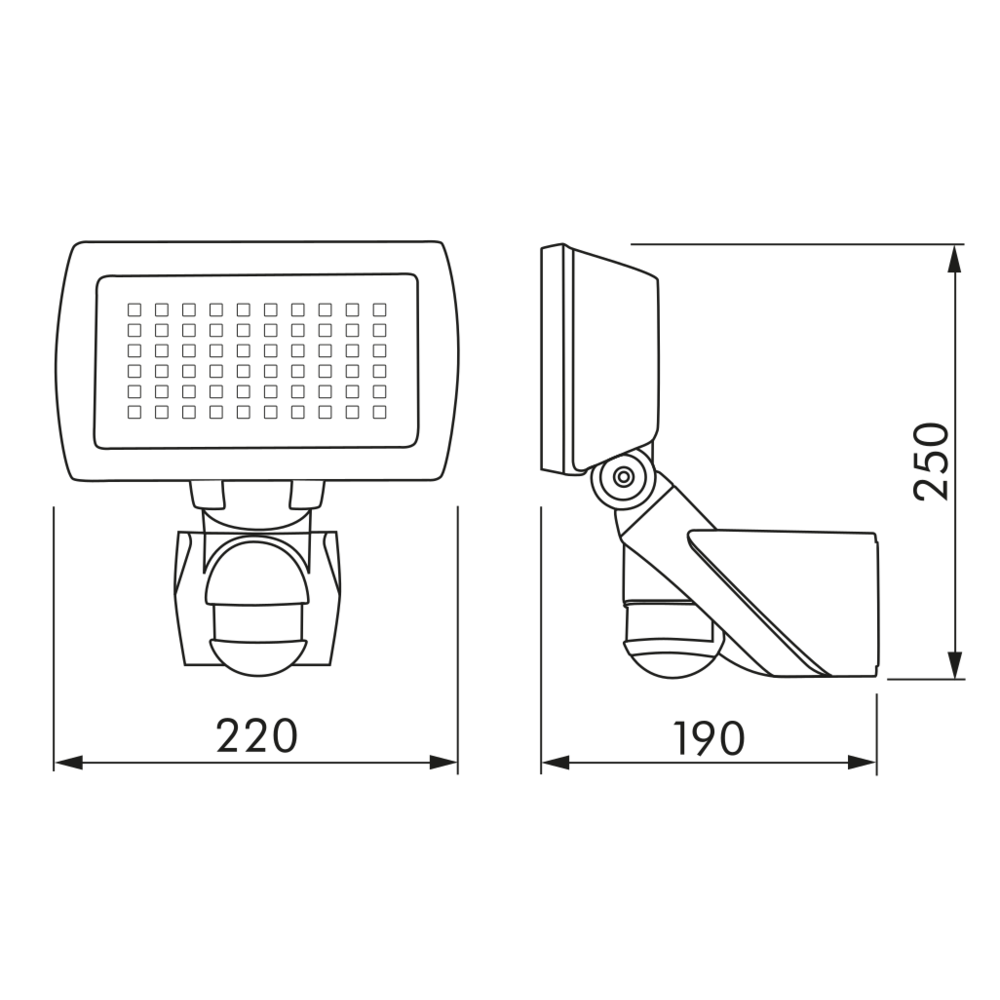

Dimensions: 220 x 190 x 250 mm
Luminous flux / intensity: LED circuit board securely mounted
Colour temperature: 4000 K neutral white

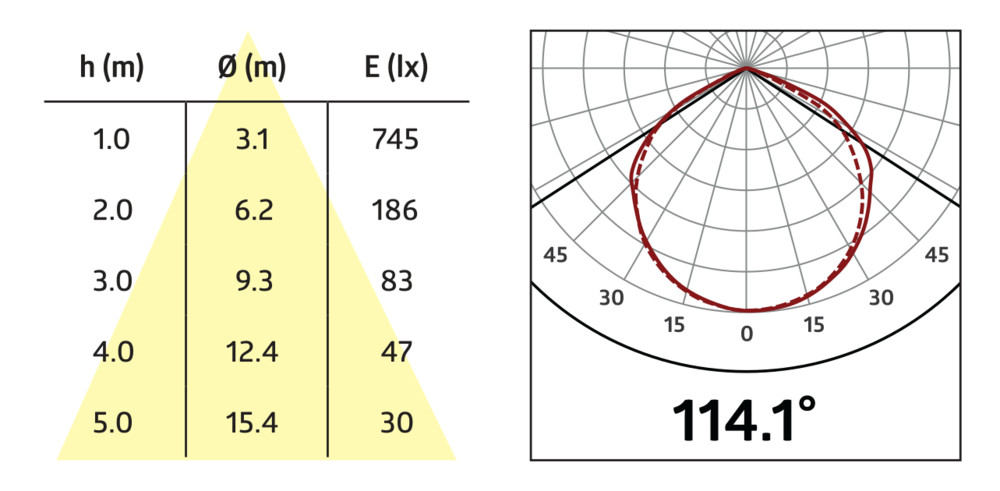

Luminous flux of light 2100 lm
Peak: 1006 cd
Efficiency: 81 lm/W
Photobiological safety: RG 0
Colour reproduction: CRI 84.1 / TM30: 82.8
Power consumption: approx. 26 W / PF 0.89
Degree / class of protection: IP44 / Class I
Impact strength: IK07
Ambient temperature: -20 °C to +40 °C
Housing: Case die-cast aluminum, lower section UV-resistant polycarbonate
Lens: glass cover, clear
Material color: black mat
Motion detector
Designation Value
Switching power: 2300 W, cos φ = 1
1150 VA, cos φ = 0.5
Detection area: horizontal 230° (Wall mounting)
Range: max. 20 m across
max. 6 m towards
max. 4 m anti-creep protection
Follow-up time: 15 sec – 16 min, Pulse
Switch-on threshold: 2 – 2000 Lux

Pivoting LED floodlight with motion detector for exterior wall mounting

Floodlight can be pivoted on three axes, direction can be fixed with locking device

Highly robust cast aluminium case with corrosion-resistant stainless steel screws

Easy mounting of base with electrical connection, insertion of light, and locking of floodlight

High energy efficiency and long life using premium-quality LED technology and good thermal management

Broad light distribution for even illumination of large surfaces

PIR detector with large detection area and creep protection

Detector adjustments via potentiometers or by IR remote control

Additional lights can be switched simultaneously by the one motion detector
