PD4-GH Family

Energy-efficient lighting for great mounting heights

Occupancy controlled and daylight dependent lighting control for industry and logistics

High ceilings, long corridors and large halls - these are all areas of application for the PD4-GH family from B.E.G. Brück Electronic GmbH. Almost no other area offers such a high potential at energy savings as high-bay warehouses, where light is switched on and off centrally. Instead of illuminating all aisles and corridors during all working hours, this should only be done as required. The light should only be switched on when there are people present. The simple solution is light control with occupancy detectors or multisensors from B.E.G..

Great mounting heights B.E.G. Brück Electronic GmbH
Great mounting heights B.E.G. Brück Electronic GmbH

However, warehouses pose special challenges for lighting control: Mounting heights of 10 metres and more are not unusual. Conventional detectors have difficulties here, on the one hand because they are designed to detect tangential movement better and, on the other hand, because of the extreme mounting height. The light values reflected from the floor can only be measured with difficulty due to laterally interfering light.

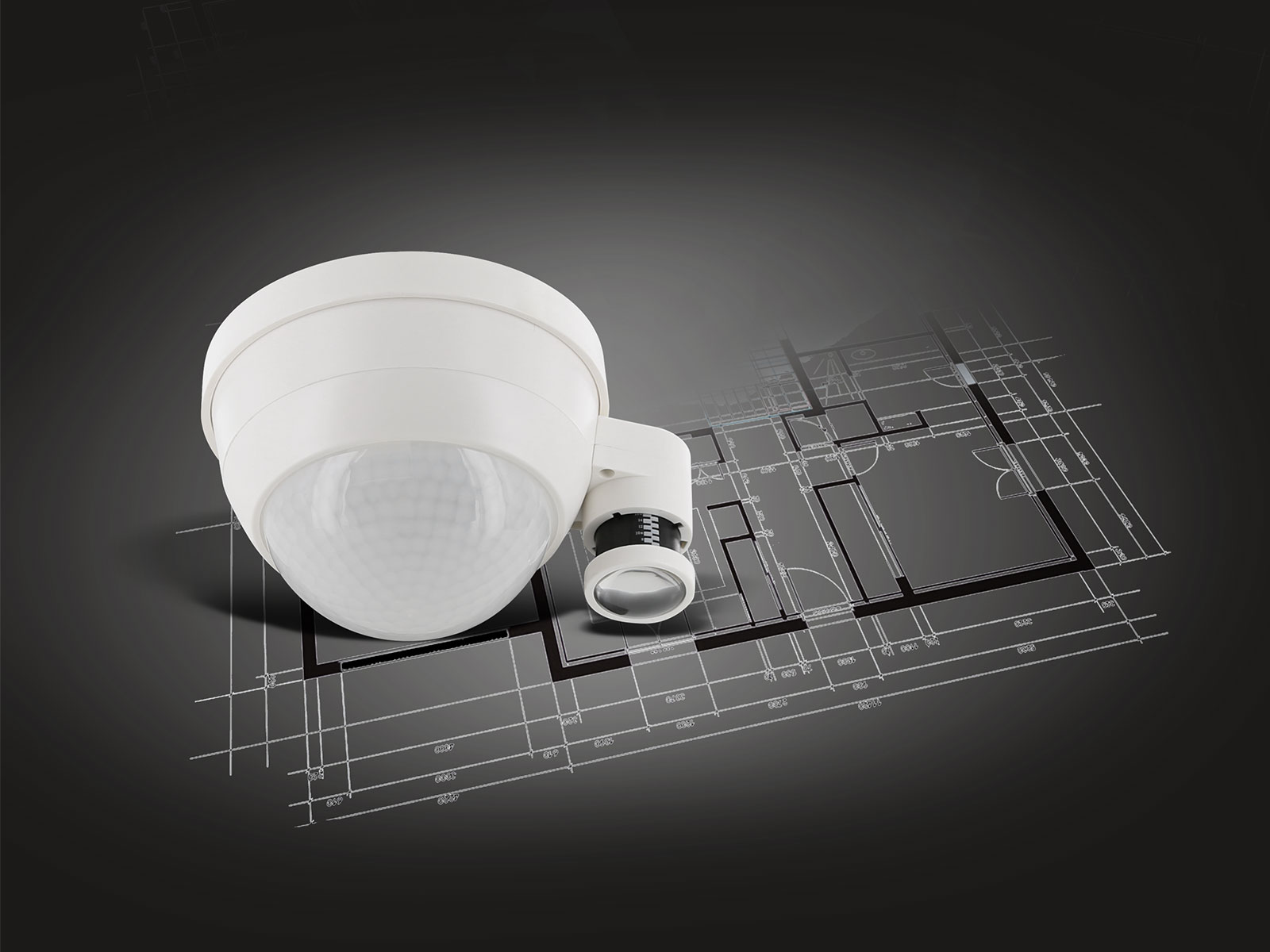

B.E.G. occupancy detectors and multisensors from the PD4-GH series have the appropriate sensor technology for motion detection and light measurement precisely for this requirement. They have a telescopic light sensor that can be pulled out to measure only light refelcted from the floor at any installation height (up to 16m) - and not light reflected by shelves, for example, which makes constant light control difficult with standard detectors. The large lens captures sufficient light from the floor even from a height of 16m to achieve constant light control.



Overview of solutions by type of lighting and stand-alone or bus system

The lighting is Concept Devices
Dimmable (DALI) Stand alone PD4-M-DACO-GH-SM-DALI-2
Switchable KNX PD4-KNXs-GH-DX-SM
+ Switching actuator
+ KNX-Power-Supply
Dimmable (DALI) KNX PD4-KNXs-GH-DX-SM
+ DALI-Gateway
+ KNX-Power-Supply
Dimmable (DALI) and standby switch-off KNX PD4-KNXs-GH-DX-SM
+ DALI-Gateway
+ Switching actuator
+ KNX-Power-Supply
Dimmable (DALI) DALI-SYS PD4-DALI-SYS-GH-SM
+ DALI-SYS-Power-Supply
Dimmable (DALI) and standby switch-off DALI-SYS PD4-DALI-SYS-GH-SM
+ DALI-SYS-Relay
+ DALI-SYS-Power-Supply
Switchable BMS PD4-BMS-GH-AP DALI-2
+ any manufacturer
Dimmable (DALI) BMS PD4-BMS-GH-SM-DALI-2
+ any manufacturer
Dimmable (DALI)
and standby switch-off
BMS PD4-BMS-GH-SM-DALI-2
+ any manufacturer
Switchable Bluetooth Casambi PD4-CAS-GH
Dimmable (DALI) Bluetooth Casambi PD4-CAS-GH DALI-2

Benefits of demand-oriented lighting control:

Great mounting heights B.E.G. Brück Electronic GmbH
  • The energy costs for the lighting are massively reduced, usually between 60% and 80%.
  • The luminaires (or light sources) are less stressed and last longer. Maintenance intervals can become longer, resulting in lower costs and lower resource consumption.
  • Safety is increased because no one can wrongly turn off the light for a large area even though someone is still on site.
