24 m

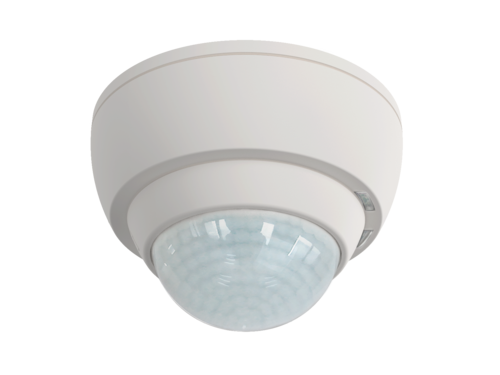

Prod.No. 92761 EAN: 4007529927616 PD4-M-2C-DS-SM

  • Voltage: 110 – 240 V AC 50 / 60 Hz
  • Dimensions: Ø 124 x 85 mm
  • Power consumption: < 1.5 W
Designation Value
Voltage: 110 – 240 V AC 50 / 60 Hz
Dimensions: Ø 124 x 85 mm
Power consumption: < 1.5 W
Detection area: horizontal 360° (Ceiling mounting)
Range: max. Ø 24 m across
max. Ø 9 m towards
max. Ø 8 m seated
Monitored area (tangential movement): 450 m² / 2.5 m mounting height
Mounting height min./max./recommended: 2 m / 10 m / 2.5 m
Degree / class of protection: IP20 / Class II
Impact strength: IK04
Ambient temperature: -25 °C to +50 °C
Housing: polycarbonate, UV-resistant
Material color: white mat, similar to RAL9010
Connections and wires: 0.5 ... 1.5 mm² rigid
: Channel 1 and Channel 2 (lighting control)
Switching power: 2300 W, cos φ = 1
1150 VA, cos φ = 0.5
800 W LED
max. inrush current Ip (20 ms) = 165 A
max. inrush current Ip (200 µs) = 800 A
Type of contact (k): 2x µ-contact, NO contact with tungsten pre-make contact
Follow-up time: 15 sec – 60 min, Pulse
Switch-on threshold: 10 – 2000 Lux
Light measuring: Mixed light measuring

Occupancy detector connectable to two different phases

2 channels for switching light: the illumination system can be divided into two separate groups being electrically isolated.

Version as master device

Extension of the detection area with one additional PD4-M-2C-DS configured as a Slave device

Manual switching possible via a shared pushbutton

Additional functions can be set up using the optional remote control.

Factory settings 10 min and 500 lux

Application examples:
entrance halls, corridors/hallways, staircases, toilets, equipment rooms
