Product being phased out- contact us for details

Prod.No. 1210 EAN: 4007529012107 DT32/6/3DALI-LED

  • Voltage: 230 V AC +/- 10% 50 Hz

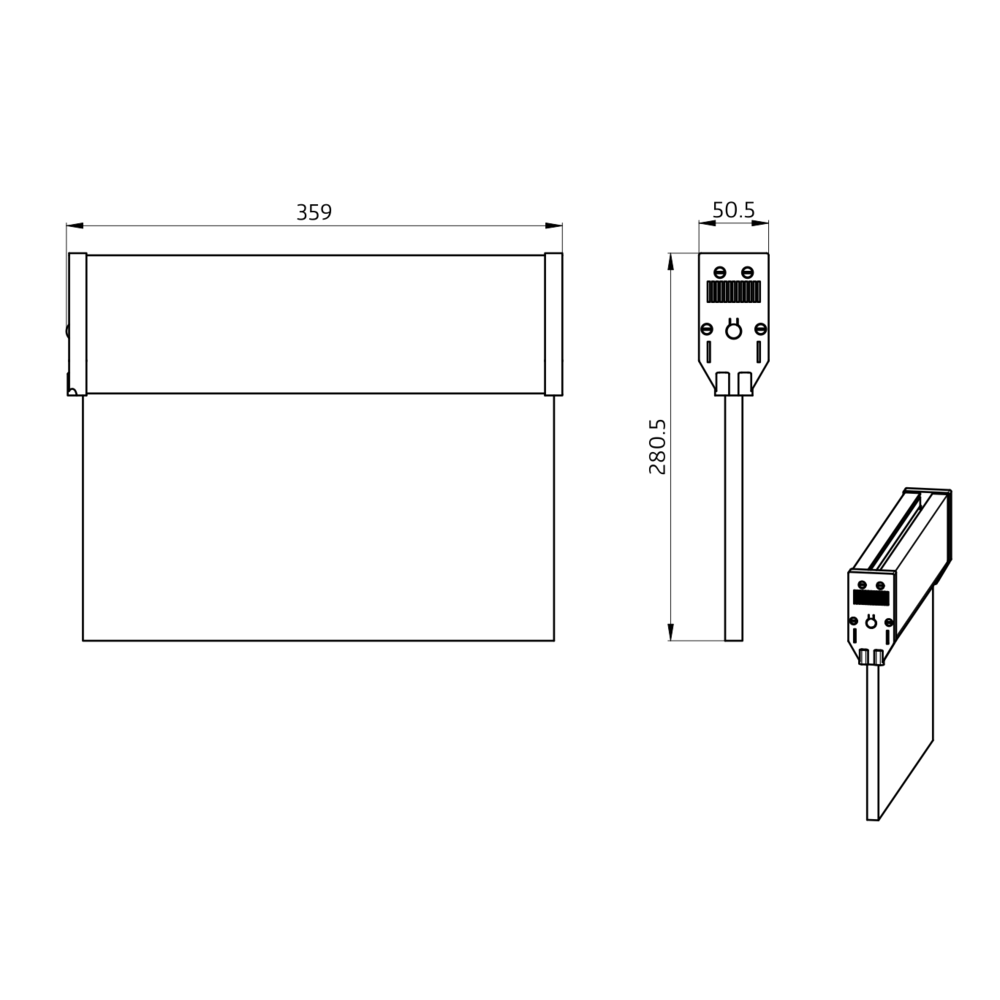

  • Dimensions: 359 x 50 x 281
  • Operation mode: Permanent operation, Wake up mode
Designation Value
Voltage: 230 V AC +/- 10% 50 Hz
Dimensions: 359 x 50 x 281
Operation mode: Permanent operation, Wake up mode
Luminous flux / intensity: LED circuit board 12 x 0.5 W
Colour temperature: 6500 K daylight white
Degree / class of protection: IP20 / Class I
Ambient temperature: 0 °C to +35 °C
Housing: aluminium profile
Side panels made of Polycarbonate
Material color: white, similar to RAL9016
Single-battery luminaire
Designation Value
Accu: NiMH 3.6 V
800 mAh
Nominal operation duration: 3 h
Monitoring
Designation Value
Local surveillance: automatic self-test
Central monitoring: Dali-Bus B.E.G.-DALI-SYS

LED emergency light with single battery

Glass lamp in modern design

Bright and even illumination

Environmentally friendly NiMH battery with deep discharge protection

Bidirectionally remote control-capable with the IR adapter and the B.E.G. smartphone app

Automatic self-test with a two-colour status LED

Central monitoring option with B.E.G.-DALI-SYS via a DALI bus

Incl. LED lamps, display panels and battery
