Product no longer available

Prod.No. 92736 EAN: 4007529927364 PD2N-LON-FC

  • Voltage: 24 V AC / DC +/- 20%

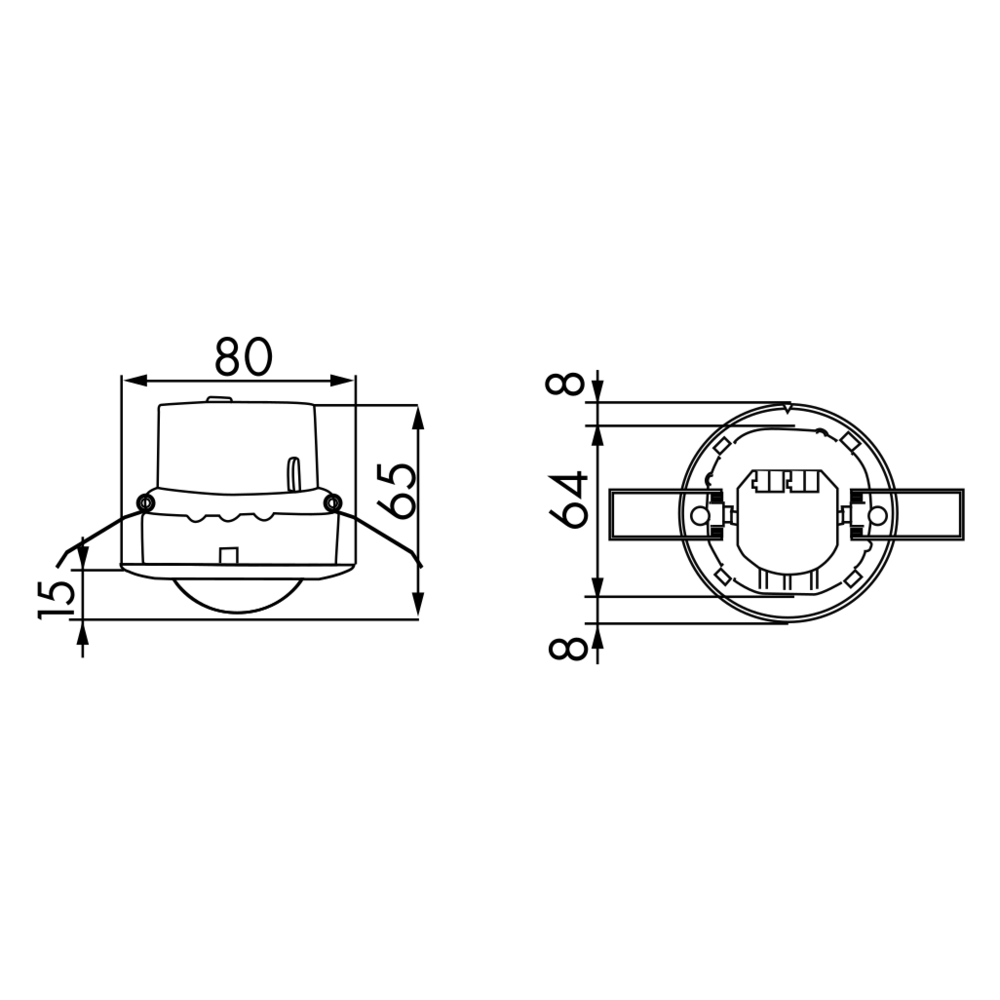

  • Dimensions: Ø 80 x 65 mm
  • Typ. power input: 12 mA at 24 V DC
    20 mA at 24 V AC
Designation Value
Voltage: 24 V AC / DC +/- 20%
Dimensions: Ø 80 x 65 mm
Typ. power input: 12 mA at 24 V DC
20 mA at 24 V AC
Power consumption: < 0.5 W
Detection area: horizontal 360° (Ceiling mounting)
Range: max. Ø 10 m across
max. Ø 6 m towards
max. Ø 4 m seated
Monitored area (tangential movement): 78 m² / 2.5 m mounting height
Mounting height min./max./recommended: 2 m / 5 m / 2.5 m
Degree / class of protection: IP20 / Class II
Impact strength: IK05
Ambient temperature: +5 °C to +50 °C
Housing: polycarbonate, UV-resistant
Material color: white mat, similar to RAL9010
Brightness set value: 0 – 2000 Lux
Light measuring: Mixed light measuring

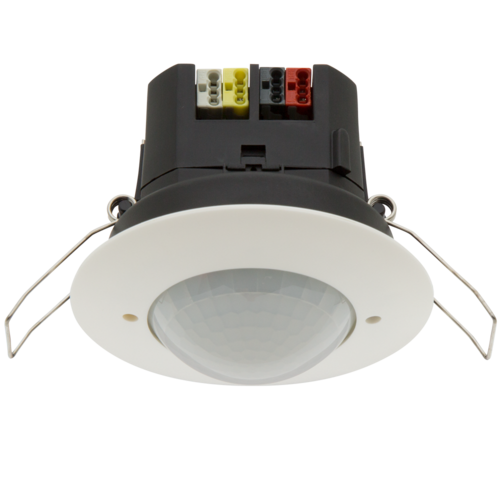

LON occupancy detector with integrated light sensor for daylight-dependent lighting regulation

The following variables are made available:
1 x Lightsensor
1 x Occupancy sensor
1 x Occupancy and light controller
1 x Occupancy controller
2 x Sunblind switch
1 x Space comfort controller
3 x push button function
1 x Scene panel

Full-automatic or Semi-automatic operation mode

Switching or Constant Light control modes

Easy interface to HVAC systems

FT5000 LON transceiver

All configuration properties changeable via network variables

Remote control (optional)

Settings with the LON installation tool

Adjustable on and off delay for orientation light when no people are present

The products are supported up to and including Windows 7

Application examples:
staircases, small offices, open-plan offices, conference rooms, classrooms/seminar rooms
