Product no longer available

Prod.No. 92628 EAN: 4007529926282 FL3N-LED-130

  • Voltage: 110 – 240 V AC 50 / 60 Hz

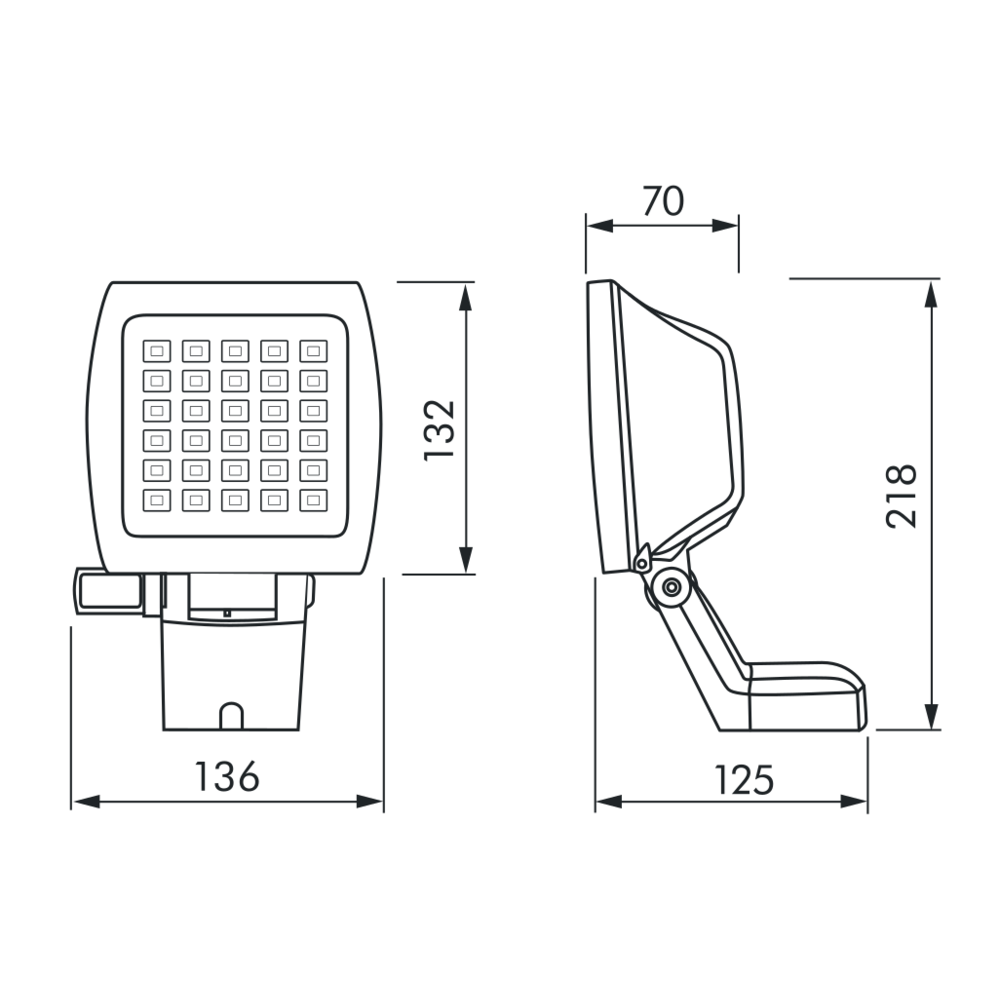

  • Dimensions: 132 x 125 x 218 mm
  • Luminous flux / intensity: LED circuit board securely mounted
    Colour temperature: 4000 K neutral white

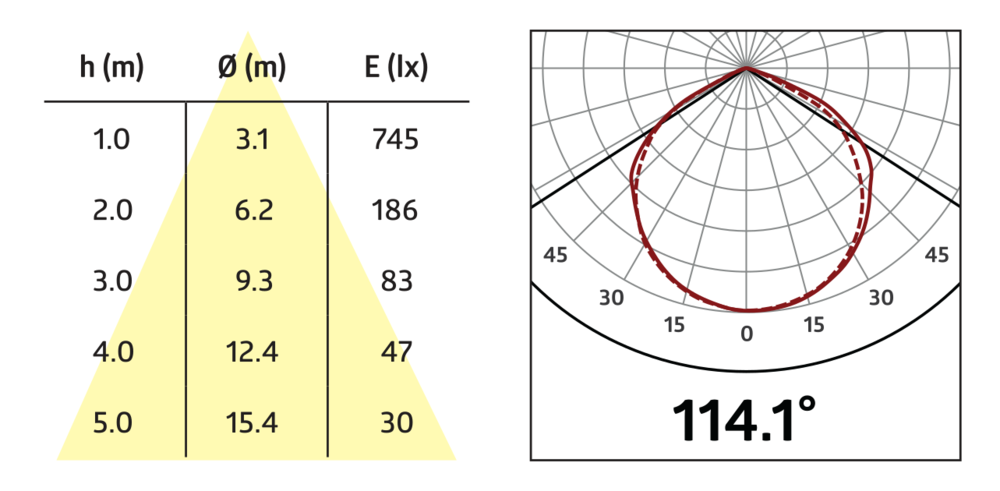

    Luminous flux of light 1050 lm
    Peak: 539 cd
Designation Value
Voltage: 110 – 240 V AC 50 / 60 Hz
Dimensions: 132 x 125 x 218 mm
Luminous flux / intensity: LED circuit board securely mounted
Colour temperature: 4000 K neutral white
Luminous flux of light 1050 lm
Peak: 539 cd
Efficiency: 75 lm/W
Photobiological safety: RG 0
Colour reproduction: CRI 82.8 / TM30: 82.7
Power consumption: 14 W / PF 0.7
Degree / class of protection: IP44 / Class I
Impact strength: IK05
Ambient temperature: -20 °C to +40 °C
Housing: Case die-cast aluminum, lower section UV-resistant polycarbonate
Lens: glass cover, clear
Material color: black mat, similar to RAL9005
Motion detector
Designation Value
Switching power: 1000 W, cos φ = 1
500 VA, cos φ = 0.5
Detection area: horizontal 130° (Wall mounting)
Range: max. 10 m across
max. 3 m towards
Follow-up time: 30 sec – 30 min, Pulse
Switch-on threshold: 5 – 2000 Lux

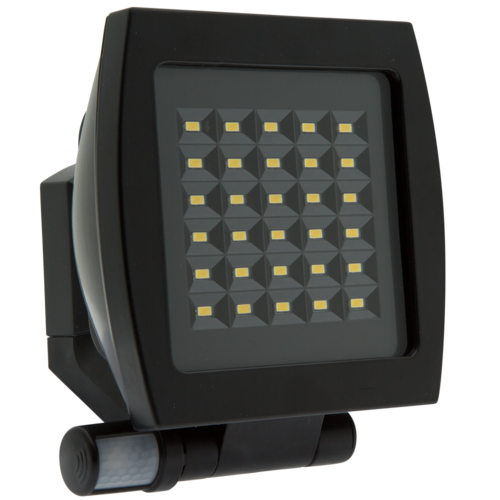

Pivoting LED floodlight with motion detector for exterior wall mounting

Direction can be fixed with locking device

Highly robust cast aluminium case with corrosion-resistant stainless steel screws

Easy mounting of base with electrical connection, insertion of light, and locking of floodlight

High energy efficiency and long life using premium-quality LED technology and good thermal management

Broad light distribution for even illumination of large surfaces

Settings via potentiometers

Additional lights can be switched simultaneously by the one motion detector

Integrated motion detector with narrow detection area for pathes and staircases

Application examples:
Ideal for monitoring narrow lots or entrance fronts
