Product no longer available

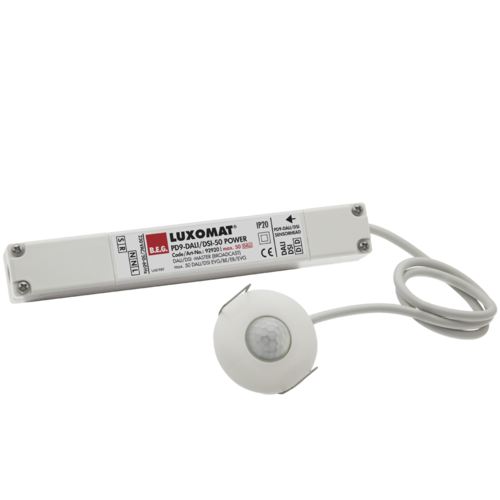

Prod.No. 92920 EAN: 4007529929207 PD9-M-DALI/DSI-FC

Successor product: 93470 - PD9-M-DACO-FC DALI-2

Mini occupancy detector for daylight-dependent lighting control

DALI / DSI interface for control of digital dimmable electronic ballasts as a group

Switching between DALI and DSI possible with remote control

Designation Value
Voltage: 110 – 240 V AC 50 / 60 Hz

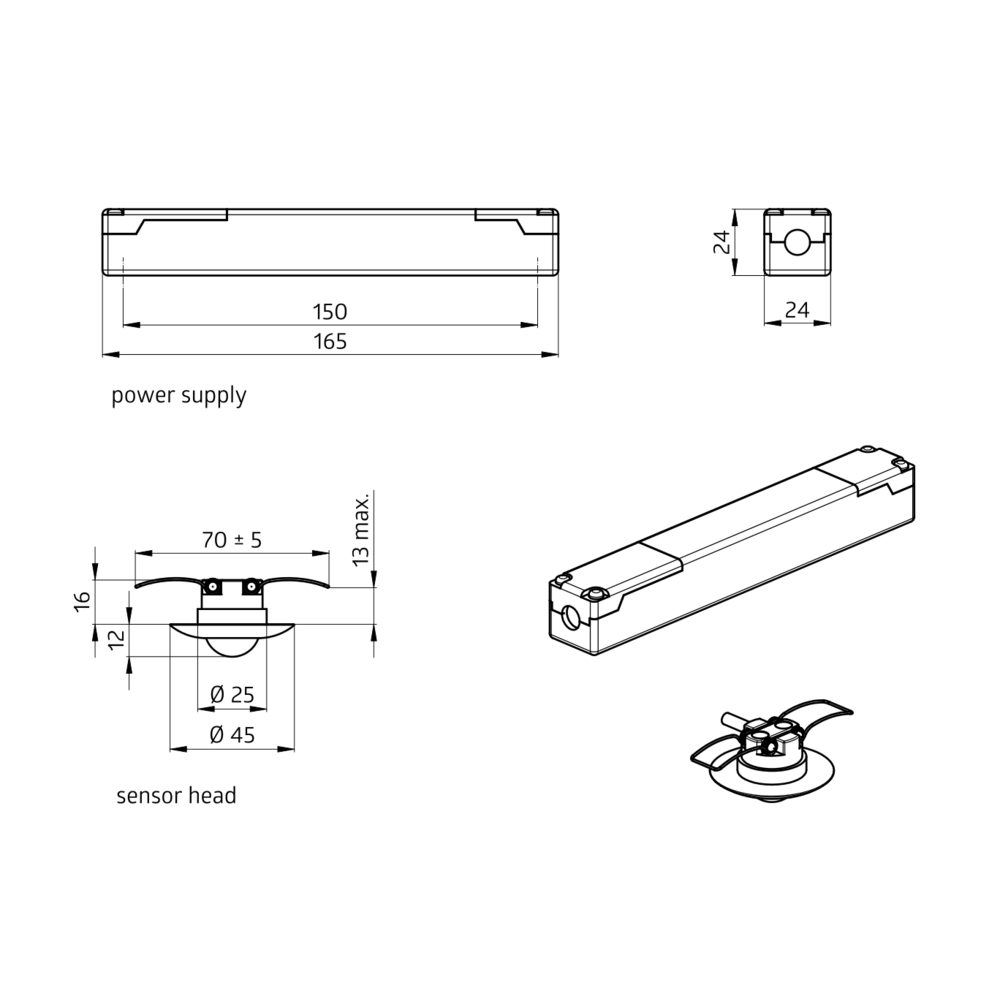

Dimensions: Sensor head: Ø 45 x 28 mm, Power supply: 165 x 24 x 24 mm
Power consumption: approx. 1 W
Detection area: horizontal 360° (Ceiling mounting)
Range: max. Ø 10 m across
max. Ø 6 m towards
max. Ø 4 m seated
Monitored area (tangential movement): 78 m² / 2.5 m mounting height
Mounting height min./max./recommended: 2 m / 5 m / 2.5 m
Degree / class of protection: IP20 / Class II
Ambient temperature: -25 °C to +50 °C
Housing: polycarbonate, UV-resistant
Material color: white mat, similar to RAL9010
Cable length: 45 cm
Channel 1 (lighting control)
Designation Value
DALI output: up to 50 DALI / DSI-EB
Follow-up time: 1 min – 30 min
Orientation light: 10 – 30 % / OFF / 5 min – 60 min / ∞
Brightness set value: 10 – 2000 Lux
Light measuring: Mixed light measuring

Mini occupancy detector for daylight-dependent lighting control

DALI / DSI interface for control of digital dimmable electronic ballasts as a group

Switching between DALI and DSI possible with remote control

Manual switching and dimming via push button possible

Version as master device

Orientation light function

Detection area can be extended by using slave devices

Easy operation with remote control (required)

Power supply passes through the hole in the ceiling for the detector (34 mm Ø)

Semi-automatic, full-automatic or twilight switch mode

Includes 45 mm cover ring and blinds

Spring clips for quick and easy installation in suspended ceilings and light fittings

Factory settings 10 min and 500 lux

Application examples:
entrance halls, small offices, corridors/hallways
