ViSTATION

More functions, more performance!

Individual visualisation for KNX

The B.E.G. ViStation offers an individual visualisation for every KNX project. Due to its constant further development, it not only ensures the optimal representation of your projects, but also that each of your KNX planning can be visualised. It doesn't matter whether the visualisation is created for a private residence, an administration complex, smaller commercial or industrial operations - with the help of the B.E.G. ViStation, all your projects are visualised individually and in just a few steps!

Easy set-up

Setting up the ViStation is quick and easy. By importing the KNX esf file from the ETS, most of the work is already done. With just a few clicks, you can create floors and rooms, select symbols if necessary and assign them to the respective area. Within a few minutes, the visualisation of a single-family house is created.

ViSTATION B.E.G. Brück Electronic GmbH
ViSTATION B.E.G. Brück Electronic GmbH

Uncomplicated operation

All parameters generated in the KNX project, such as temperature, brightness, open doors/windows, etc. can be displayed via the visualisation. The systems can also be easily operated via the switching, control and dimming functions that have been created.

Of course, user management is a must. User interfaces with the assignment of operating and reading rights are created in just a few steps. As a user, you decide whether your project is to be visualised with a floor plan or a pure tile view. In the floor plan view, the visualisation elements can be placed freely; in the tile view, they are sorted in a practical and clear manner. This can be adjusted according to the customer's wishes.



ViStation comfort functions at a glance

Many comfort functions have been implemented that raise the standard of a modern visualisation to a high level.

Schedule with various astro functions and annual calendar

Monitoring und trend display

Audio control

IP camera (RTSP)

User administration

Output and forwarding of status reports

and much more

Whether via tablet, smartphone or PC, the visualisation can be displayed on any system. Which operating system you use is also irrelevant here. The ViStation is not a KNX device, it is integrated into a network as a server via LAN and connected to the KNX system via IP/TP line coupler.

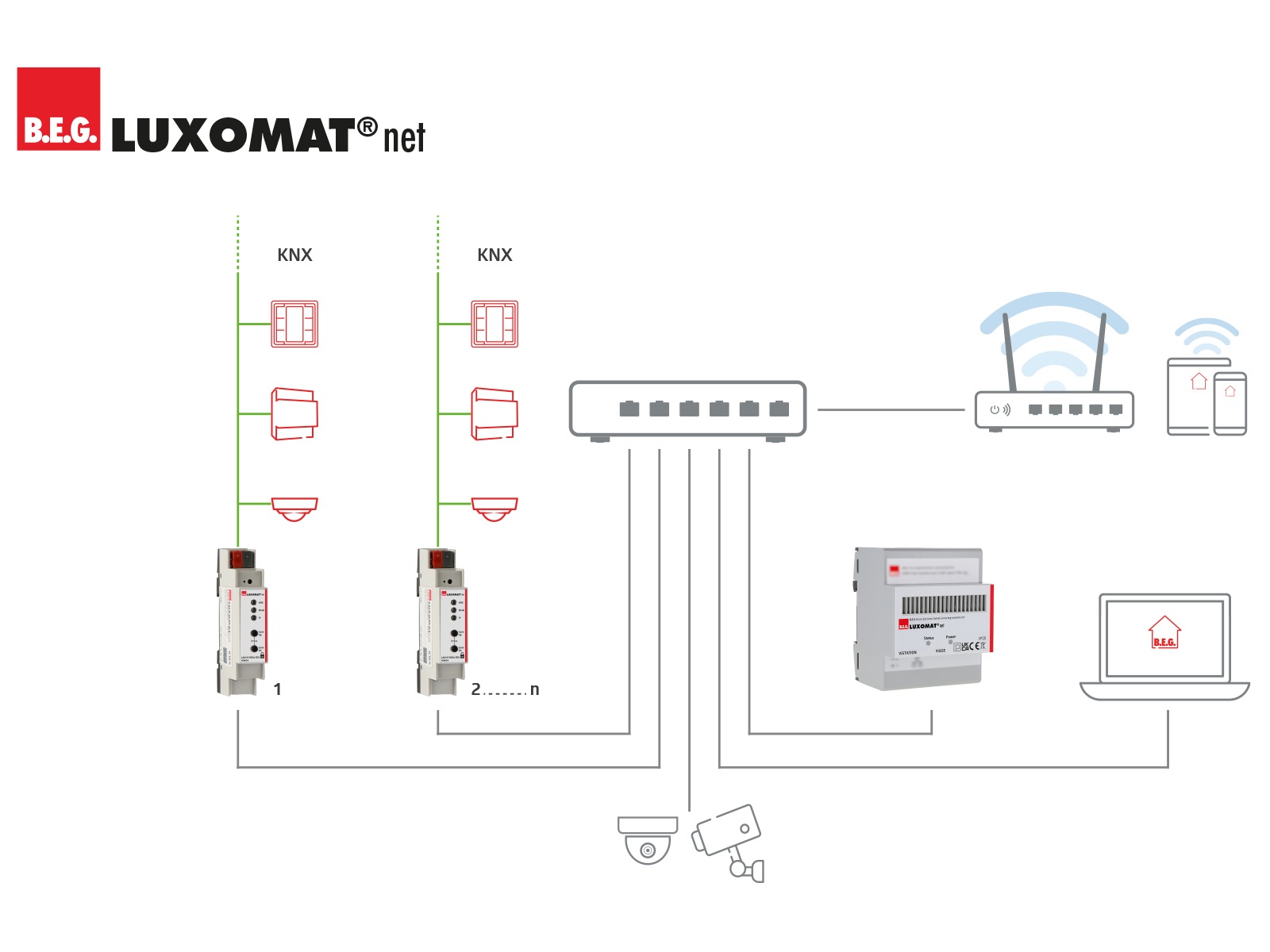

System structure:

ViSTATION B.E.G. Brück Electronic GmbH

Up to 1,600 KNX devices can be visualised with their respective functions. The basic version of the ViStation already allows 200 devices; via licence upgrades, the maximum expansion in steps of 200 devices each can be flexibly adapted to the size of the system. The chargeable device upgrades can be requested via our B.E.G. customer support. If the system size exceeds 1,600 KNX devices, B.E.G. also offers a Windows-based solution for several thousand devices on request. Further function upgrades are already in preparation and will also be provided in the same way as the device upgrades.



ViSTATION B.E.G. Brück Electronic GmbH

Media Center

Information material

Operation

ViSTATION_APP_Windows_V1.2.2.0.zip

ViSTATION_APP_Android_V1.1.0.apk

ViSTATION App Android

ViSTATION APP iOS

Software

ViSTATION_Desktop_V1.4.0.0.zip

Firmware

ViSTATION_Firmware_V3.7.0.visw

ViSTATION Firmware Release Notes
