Product no longer available

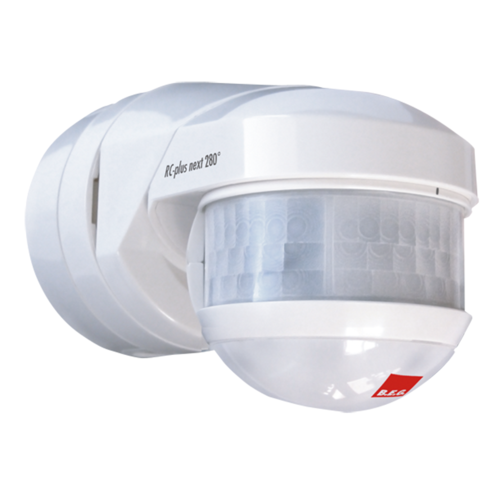

Prod.No. 97003 EAN: 4007529970032 RC-plus next 280

Successor product: 93341 - RC-plus next N 280
  • Voltage: 110 – 240 V AC 50 / 60 Hz (can also be supplied with other operating voltages ON request)

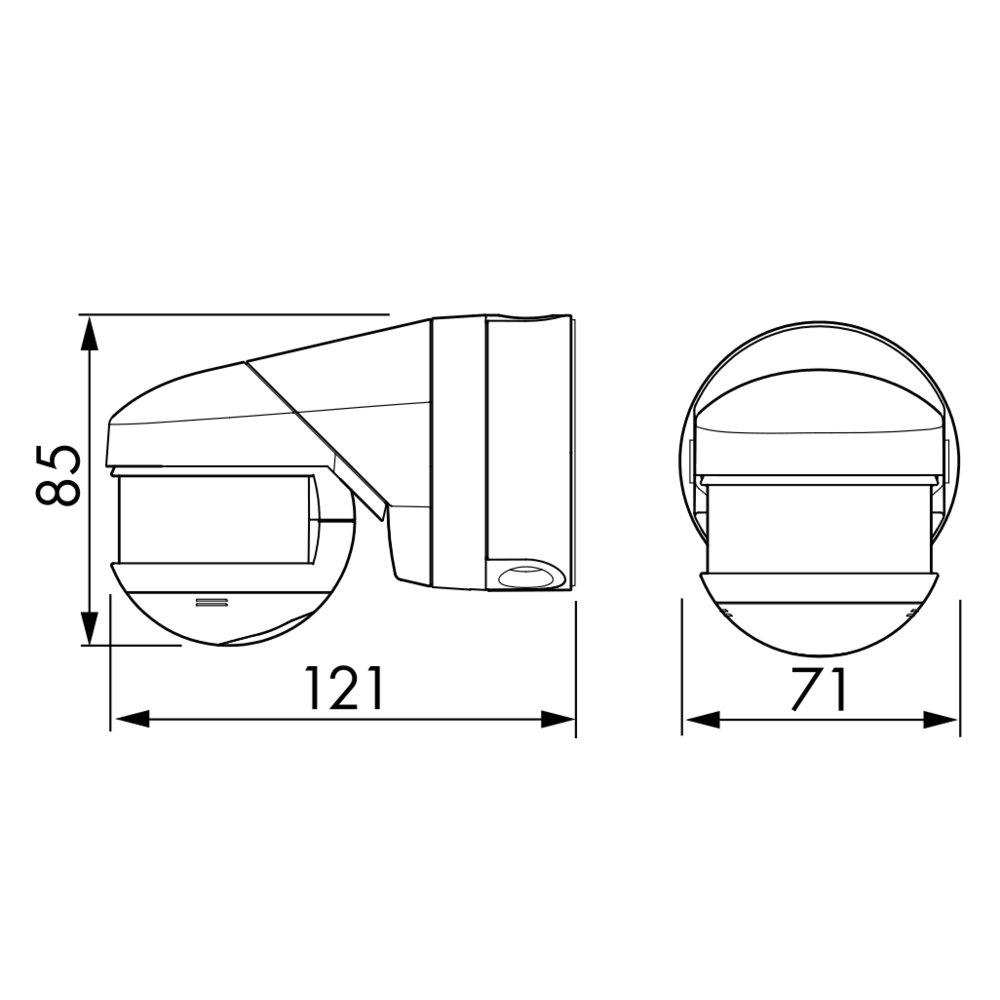

  • Dimensions: 121 x 71 x 85 mm
  • Power consumption: approx. 0.5 W
Designation Value
Voltage: 110 – 240 V AC 50 / 60 Hz (can also be supplied with other operating voltages ON request)
Dimensions: 121 x 71 x 85 mm
Power consumption: approx. 0.5 W
Detection area: horizontal 280° (Wall mounting)
Range: max. 20 m across
max. 6 m towards
max. 4 m anti-creep protection
Monitored area (tangential movement): 970 m² / 2.5 m mounting height
Mounting height min./max./recommended: 2 m / 5 m / 2.5 m
Degree / class of protection: IP54 / Class II
Ambient temperature: -25 °C to +50 °C
Housing: polycarbonate, UV-resistant
Material color: white mat, similar to RAL9010
Channel 1 (lighting control)
Designation Value
Switching power: 3000 W, cos φ = 1
1500 VA, cos φ = 0.5
max. inrush current Ip (20 ms) = 165 A
max. inrush current Ip (200 µs) = 800 A
Type of contact (k): 1x µ-contact, NO contact with tungsten pre-make contact
Follow-up time: 15 sec – 16 min, Pulse
Switch-on threshold: 2 – 2000 Lux

Motion detector with 280° detection area and anti-creep zone

Mechanical range adjustment

Different follow-up time depending on direction of movement

Adjustable ball head

Immediate operation using factory settings

Additional functions can be set up using the optional remote control.

Easy mounting thanks to plug base

Special socket for external corner mounting included

Wall, ceiling and corner mounting

Factory settings 3 min and 20 lux

Application examples:
for narrow premises, walkways, gateways
