40 m

Prod.No. 92485 EAN: 4007529924851 PD4-M-1C-C-PS-SM

  • Voltage: 110 – 240 V AC 50 / 60 Hz
  • Dimensions: Ø 101 x 76 mm
  • Power consumption: approx. 0.7 W
Type of contact (k)
1x µ-contact, NO contact with tungsten pre-make contact, additional NC-safety contact
1x µ-contact, NO contact with tungsten pre-make contact
Show available options
 1x µ-contact, dry NO contact with tungsten pre-make contact
1x µ-contact, NO contact with tungsten pre-make contact, additional NC-safety contact
2x µ-contact, NO contact with tungsten pre-make contact
Show available options
Mounting
surface-mounted
surface-mounted
ceiling-mounted
Show available options
 flush-mounted
Show available options
Range
40.00 m
24.00 m
Show available options
40.00 m
30.00 m
Show available options
Degree / class of protection
IP54
IP54
IP20
Show available options
Channel
1
2
Show available options
1
Designation Value
Voltage: 110 – 240 V AC 50 / 60 Hz

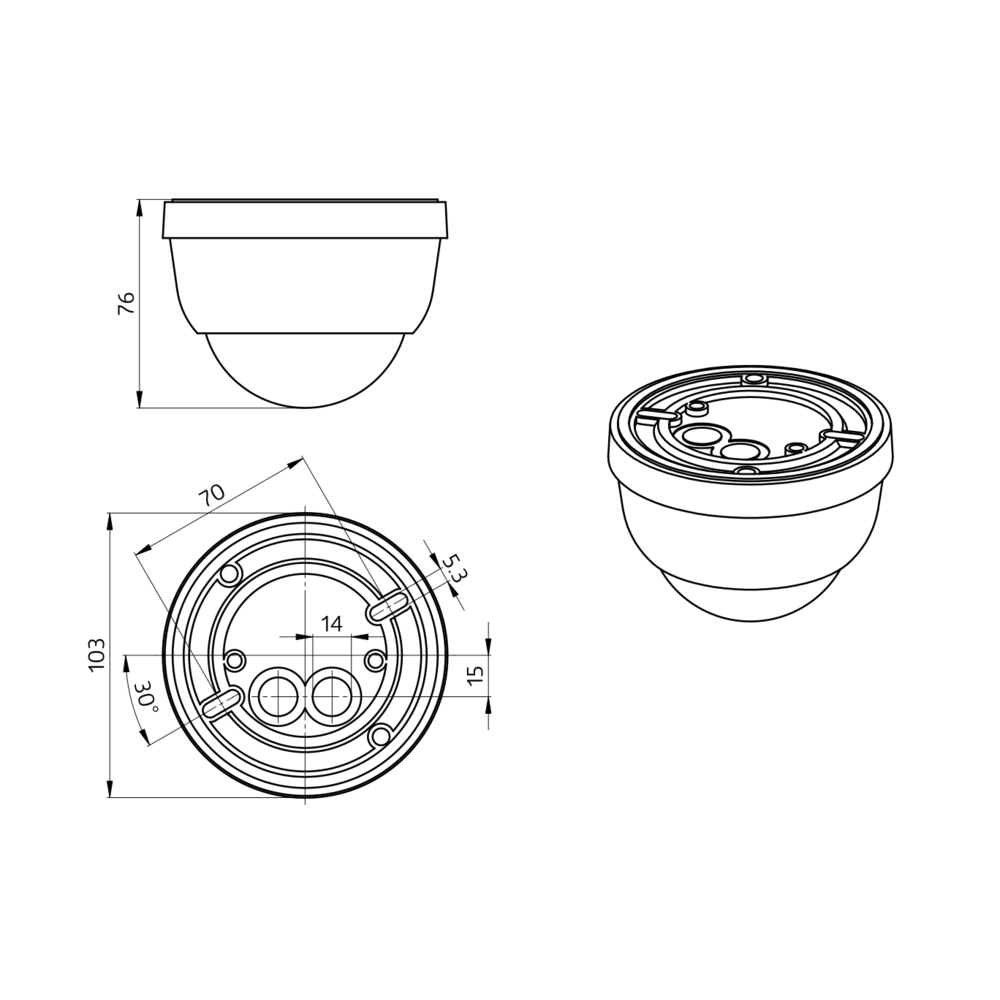

Dimensions: Ø 101 x 76 mm
Power consumption: approx. 0.7 W
Detection area: horizontal 360° (Ceiling mounting)
Range: max. Ø 40 m across
max. Ø 20 m towards
Monitored area (tangential movement): 250 m² / 2.5 m mounting height
Mounting height min./max./recommended: 2.4 m / 2.6 m / 2.5 m
Degree / class of protection: IP54 / Class II
Impact strength: IK04
Ambient temperature: -25 °C to +50 °C
Housing: polycarbonate, UV-resistant
Material color: white mat, similar to RAL9010
: Channel 1 (lighting control)
Switching power: 2300 W, cos φ = 1
1150 VA, cos φ = 0.5
800 W LED
max. inrush current Ip (20 ms) = 120 A
Type of contact (k): 1x µ-contact, NO contact with tungsten pre-make contact, additional NC-safety contact
Follow-up time: 15 sec – 30 min, Pulse
Switch-on threshold: 10 – 2000 Lux
Light measuring: Mixed light measuring

Occupancy detector with NO contact and safety circuit by NC contact

Guarantees illumination even if sensor fails

Designed for corridors

Version as master device

Detection area can be extended by using slave devices

Manual switching via push-button possible

Additional functions can be set up using the optional remote control.

Factory settings 10 min and 500 lux

There are markings to ensure correct alignment during installation

Application examples:
entrance halls, corridors/hallways, small offices, open-plan offices, conference rooms, classrooms/seminar rooms
