Product no longer available

Prod.No. 92893 EAN: 4007529928934 PD11-KNX-FLAT-FC

  • Voltage: via KNX BUS

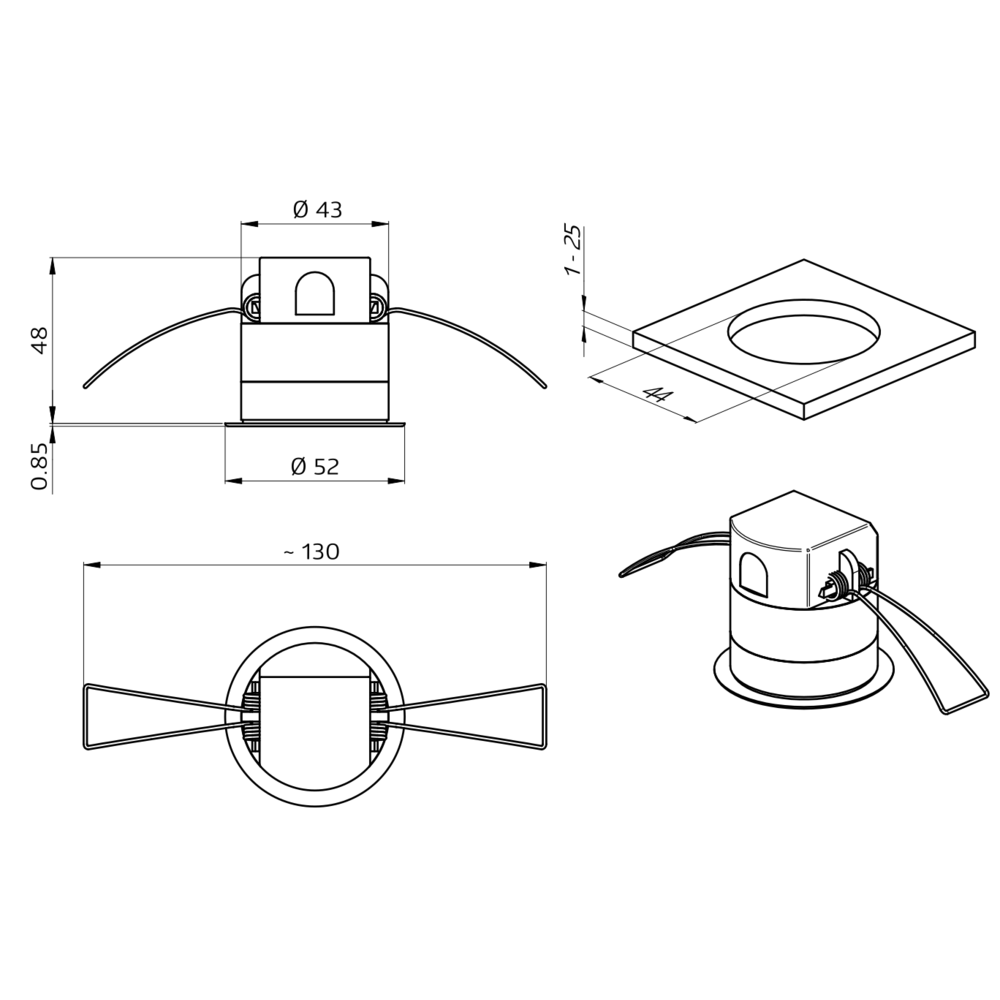

  • Dimensions: Ø 52 x 48 mm
  • Typ. power input: 8 mA
Designation Value
Voltage: via KNX BUS
Dimensions: Ø 52 x 48 mm
Typ. power input: 8 mA
Detection area: horizontal 360° (Ceiling mounting)
Range: max. Ø 9 m across
max. Ø 6 m towards
max. Ø 3 m seated
Monitored area (tangential movement): 63 m² / 2.5 m mounting height
Mounting height min./max./recommended: 2 m / 5 m / 2.5 m
Degree / class of protection: IP54 / Class II
Ambient temperature: -25 °C to +55 °C
Housing: polycarbonate, UV-resistant
Material color: white mat, similar to RAL9010
Outputs: 24
Brightness set value: 5 – 1200 Lux
Light measuring: Mixed light measuring

Low profile KNX occupancy detector with integrated KNX bus connector

When using the product database B.E.G._Praesenzmelder_928xx_V5.0, the following operation modes are available: 1. Full automatic mode 2. Semi-automatic mode 3. Slave mode 4. Occupancy-independent regulating mode

When using the product database B.E.G._Praesenzmelder_928xx_V5.0, the following operation modes are available:

  1. Full automatic mode
  2. Semi-automatic mode
  3. Slave mode
  4. Occupancy-independent regulating mode



Up to three additional switching channels – selectively either daylight-depending or not

Set values and follow-up times can be changed for all channels using communication objects

Burn-in function with adjustable burn-in time from 1 to 100 hours

With activatable motion LED, deactivatable via ETS parameter, communication object or remote control

Spring clips for quick and easy installation in suspended ceilings

Settings via ETS 3 and 4

The product database for import into the ETS database can be downloaded from the B.E.G. homepage.

Spring clips for quick and easy installation in suspended ceilings

Includes blinds and clamp ring for installation into light fittings

With accessories for flush-mounting in ceiling and exposed concrete

Typical applications:
Offices, conference rooms, schools, nursery schools, hospitals
