Prod.No. 94440 EAN: 4007529944408 HF-L1

  • Voltage: 230 V AC ±10% 50 / 60 Hz
  • Dimensions: Ø 275 x 85 mm
  • Lamp: max. 23 W with bulb socket E 27
Designation Value
Voltage: 230 V AC ±10% 50 / 60 Hz
Dimensions: Ø 275 x 85 mm
Lamp: max. 23 W with bulb socket E 27
Photobiological safety: RG 0
Degree / class of protection: IP40 / Class II
Ambient temperature: -15 °C to +30 °C
Housing: silk-mat glass
Material color: white
: Microwave detector
Radar / HF technology: 5.8 GHz, < 10 mW
Switching power: 1200 W, cos φ = 1
600 VA, cos φ = 0.5
Detection area: horizontal 360° (Ceiling mounting)
Ø 0.4 – 16 m
Follow-up time: 5 sec – 15 min
Switch-on threshold: 2 – 2000 Lux

Wall and ceiling light with integrated microwave detector

Range, switch-on threshold and follow-up time set via potentiometers

HF technology: 5.8 GHz - reacts to the smallest motion, independently of temperature

Extremely short response time

Possibility to connect other lights which are also controlled by the one microwave detector

Supply without lamp

Prod.No. 37849

Sealing ring IP54 HF-L1

  • Dimensions: Ø 230 mm
  • Degree / class of protection: IP54
  • Material color: -
Go to product
Tender document 94440 Download
CE declaration of conformity 94440 (en) Download
Short instruction Download
Manual Download

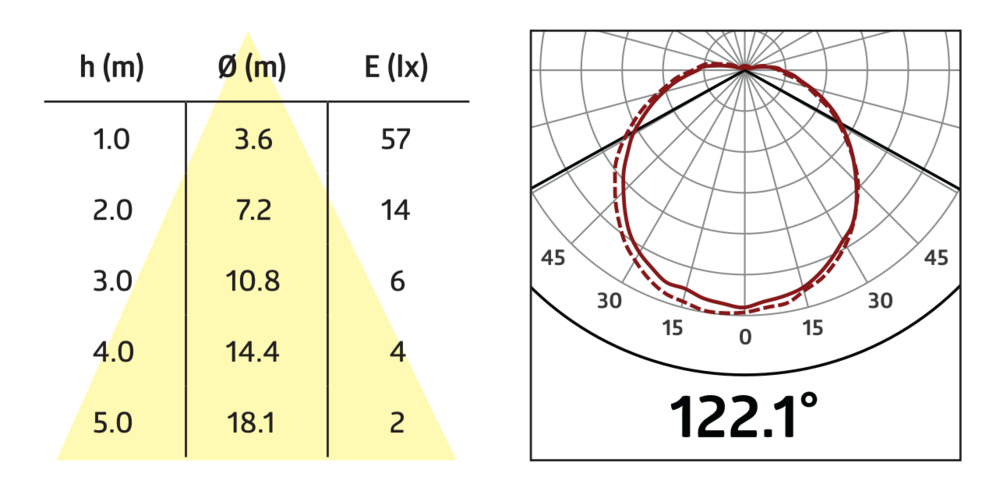

Photometric data EULUMDAT Download
