16 m
Set

Set Aleum WB BMS2 DALI-2 Wire basket BSK (Ø 164 x 143 mm)

DALI-2 (BMS) Outdoor PIR Multisensor with 180° detection and a range of up to 16 m (400 m²), DALI-2 Input Device

To receive the bundle according to the technical specification, please order the items listed. Art.No. 93555 Art.No. 92467
Combined properties
Designation Aleum WB BMS2 DALI-2 Set 93555-92467 Aleum WB BMS2 DALI-2
Art.No. 93555 		Wire basket BSK (Ø 164 x 143 mm)
Art.No. 92467
Voltage via DALI Bus, max. 22.5 V DC via DALI Bus, max. 22.5 V DC

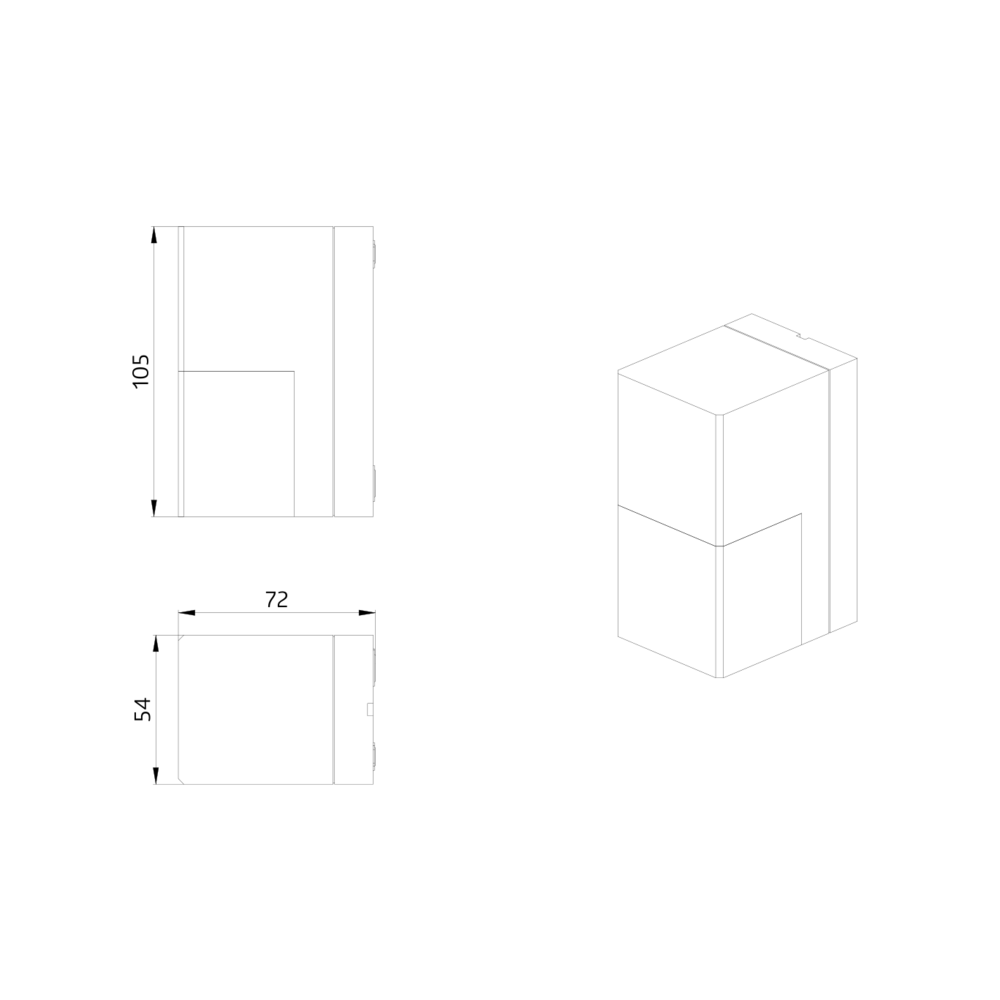

Dimensions Ø 164 x 143 mm (92467) 71 x 54 x 105 mm Ø 164 x 143 mm
Typ. power input 7 mA 7 mA
Settling time 200 ms 200 ms
Power consumption approx. 0.5 W approx. 0.5 W
Detection area horizontal 180° (Wall mounting) horizontal 180° (Wall mounting)
Range max. 16 m across
max. 5 m towards
max. 3 m anti-creep protection		 max. 16 m across
max. 5 m towards
max. 3 m anti-creep protection
Monitored area (tangential movement) 400 m² / 2.5 m mounting height 400 m² / 2.5 m mounting height
Mounting height min./max./recommended 2 m / 4 m / 2.5 m 2 m / 4 m / 2.5 m
Degree / class of protection IP54 / Class II IP54 / Class II
Impact strength IK09 (92467) IK03 IK09
Measured light output 0 - 4095 Lux, Mixed light measuring 0 - 4095 Lux, Mixed light measuring
Ambient temperature -25 °C to +50 °C -25 °C to +50 °C
Housing polycarbonate, UV-resistant + coated steel basket (92467) polycarbonate, UV-resistant coated steel basket
Material color white mat, similar to RAL9010 white mat, similar to RAL9010 white

Set : Aleum WB BMS2 DALI-2 + Wire basket BSK (Ø 164 x 143 mm) white

Motion detector with 180° detection area and creep protection

DALI-2 multisensor (input device)

DALI-2 certified product

Powered via DALI bus

DALI multimaster technology according to IEC 62386 part 103

Instance 0 provides information regarding occupancy and movement for the DALI-Bus according to IEC 62386 part 303

Instance 1 provides LUX values for the DALI-Bus according to IEC 62386 part 304

Instances 2 to 6 provide information regarding the pressing of control buttons of a compatible mini-IR remote control according to IEC 62386 part 301 on the DALI bus

Parameterisation is possible via a mandatory Multimaster-Application-Controller of any manufacturer. This controller must support IEC 62386 parts 101/103/301/303/304.

Individual adaption of the PIR sensor sensitivity

Status LEDs can be activated / deactivated

Bit resolution of light sensor adjustable

Reflection factor for calculated lux value adjustable

Bright LED indication for commissioning

Mechanical range adjustment of different PIRs

Faulty switching due to animals can be avoided by reducing the sensitivity

Simple mounting thanks to plug base
